Embedded LED Linear Light,Aluminum Profile LED Strip 2500mm for office

FOB Reference Price:Get Latest Price
US $12-18 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED, Samsung smd 5630 / Seoul Semi smd 5630
Item Type:
Light Strips
LED Light Source:
Samsung smd 5630
Type:
Flex LED Strips, Suspended
Input Voltage(V):
DC24V
Lamp Power:
18W/m
Lamp Luminous Flux(lm):
1800lm/m
CRI (Ra>):
80
Color Temperature(CCT):
2700-6500K
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
Certification:
BV, CE, EMC, LVD, RoHS
Emitting Color:
White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
RB018
Brightness:
55-60lm/led
CRI:
>80Ra
Warranty:
3 years
Aluminum profile:
Anodize (Silver)
Application Scene:
Office / Home / Business / Industrial
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1). Neutral packaging, neutral labels, no logo on products, and just English description of the product ;
2). 1 pc anti-static bag per aluminum profile ;
3). Export carton ;
Port
Shenzhen
Lead Time :
Shipped in 7 days after payment
Company Information

Shenzhen Twinkle LED Co.,Ltd.

Shenzhen Twinkle LED Company Limited was established at April.2010. Specialized in LED Research and Development , Manufacture and Export.
  Main Products : Led Flexible Strips, LED Module, Led rigid bars ;
  Main Markets : Italy, Spain, France, Germany, Austria, Czech, Slovakia, Croatia in Europe, And Mexico, Canada, USA,  Brazil in America .
  1). Experience -- More than 12 years LED Industry experience, More than 6 years LED manufacture experience ;
  2). Certificates -- CE, RoHS , BV Assessed Factory ;
  3). Export -- More than 6 years LED Products export experience ;
  4). Guaranty -- More than 6 years Alibaba gold supplier , Alibaba Trade Assurance ;

Applications

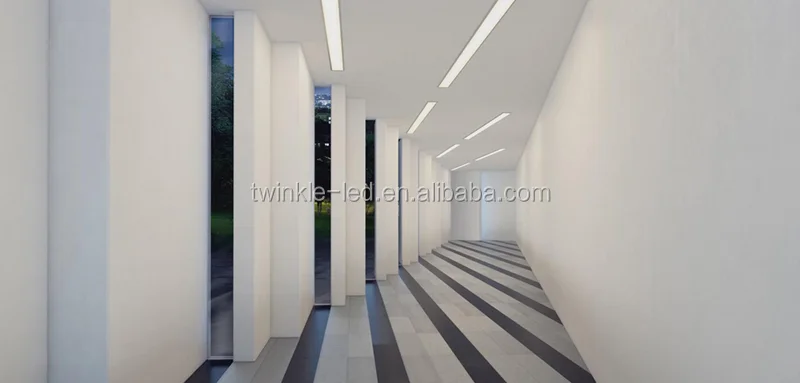

1). Office Scene

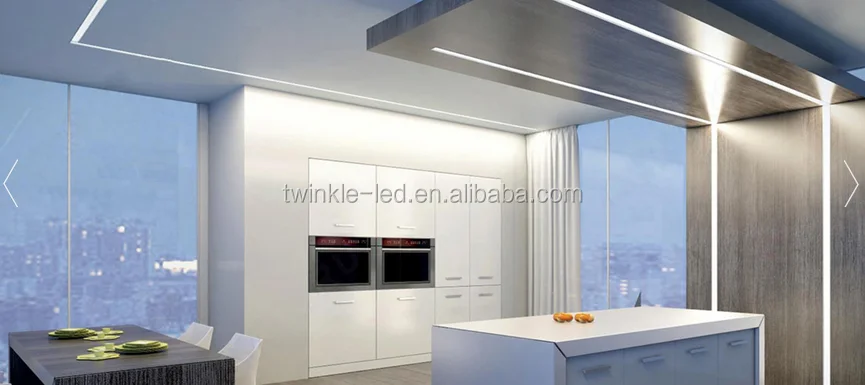

2). Home Scene


Product Description
Item
RB018 Aluminum Profile (ALP2328)
Material
Aluminium Alloy (AL 6063)
Surface
Treatment
Anodize

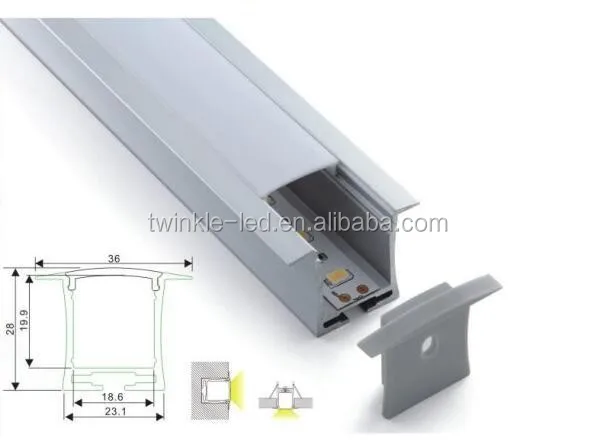

Dimension
Outside : 23.1 * 28 mm
Inside : 18.6 mm
Length
OEM Production ;
0.5m to 2.5m customize ;
Color
Silver

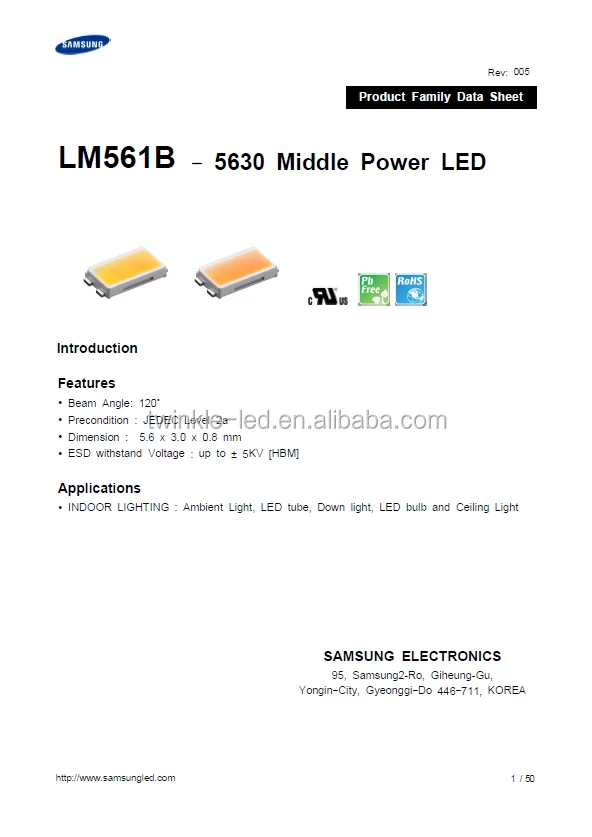

LED Strip : SAMSUNG SMD 5630 LM561B

1). 150mA, 3.0 - 3.2 V, MacAdam 3-step(3 SDCM) ;
2). High brightness 55-60lm/led , High CRI >80Ra ;
3). CCT(K) : 2700K-6000K ;
4). 150mA, Lighting Efficiency : 130lm/W ;
5). 65mA, Lighting Efficiency : 160lm/W ;
6). Built-in ESD protection device connected in parallel to LED Chip, ESD withstand Voltage : up to ± 5KV ;
7). Beam Angle: 120˚ ;
8). Precondition : JEDEC Level 2a ;
9). Dimension : 5.6 x 3.0 x 0.8 mm ;
10). The maximum compressing force is 15N on the body ; And do not place pressure on the encapsulation resin ;

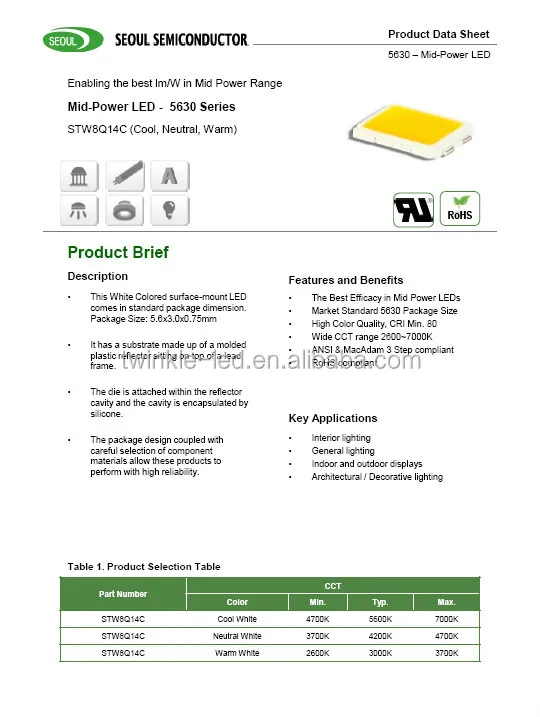

LED Strip : SEOUL SMD 5630 STW8Q14C

1). 150mA, 3.0 - 3.2 V ;
2). ANSI & MacAdam 3 Step compliant ;
3). High brightness 55-60lm/led, High CRI >80Ra ;
4). CCT(K) : 2600K-7000K ;
5). 150mA, Lighting Efficiency : 130lm/W ;
6). 65mA, Lighting Efficiency : 160lm/W ;
7). Built-in ESD protection device connected in parallel to LED Chip, ESD withstand Voltage : up to ± 5KV ;
8). Beam Angle: 120˚ ;
9). Dimension : 5.6 x 3.0 x 0.75 mm ;
10). The maximum compressing force is 15N on the body ; And do not place pressure on the encapsulation resin ;

Samsung / Seoul SMD 5630 LED Strip
Brightness
High brightness 55-60lm/led
CRI
High CRI 83Ra(WW), 85Ra(NW), 87Ra(CW)
CCT(K)
2700K-3200K Warm White
4000K-4500K Neutral White
6000K-6500K Cold White
Material
3 Ozs Copper, thickened double PCB
Imported genuine 3M tape 300LSE
Warranty
3 years
Accessories
Component
Material
Dimension
Surface Treatment
Color
End Caps
Plastic Cover
36 * 28 mm
Spray Lacquer
Gray
Cover
Diffusion Cover
2500 mm
-
-
Suspended Accessories
Steel Alloy
-
-
Silver

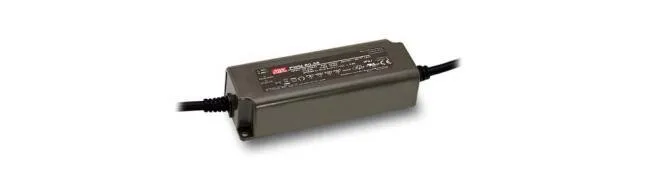

Power Supply
Aluminum Alloy
-
-
-

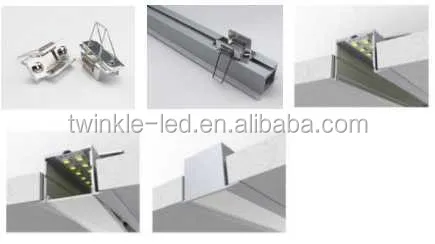

Installation Process

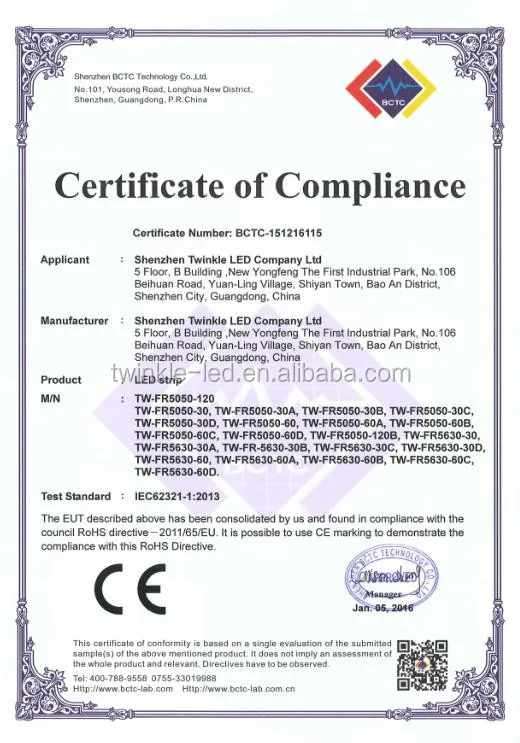

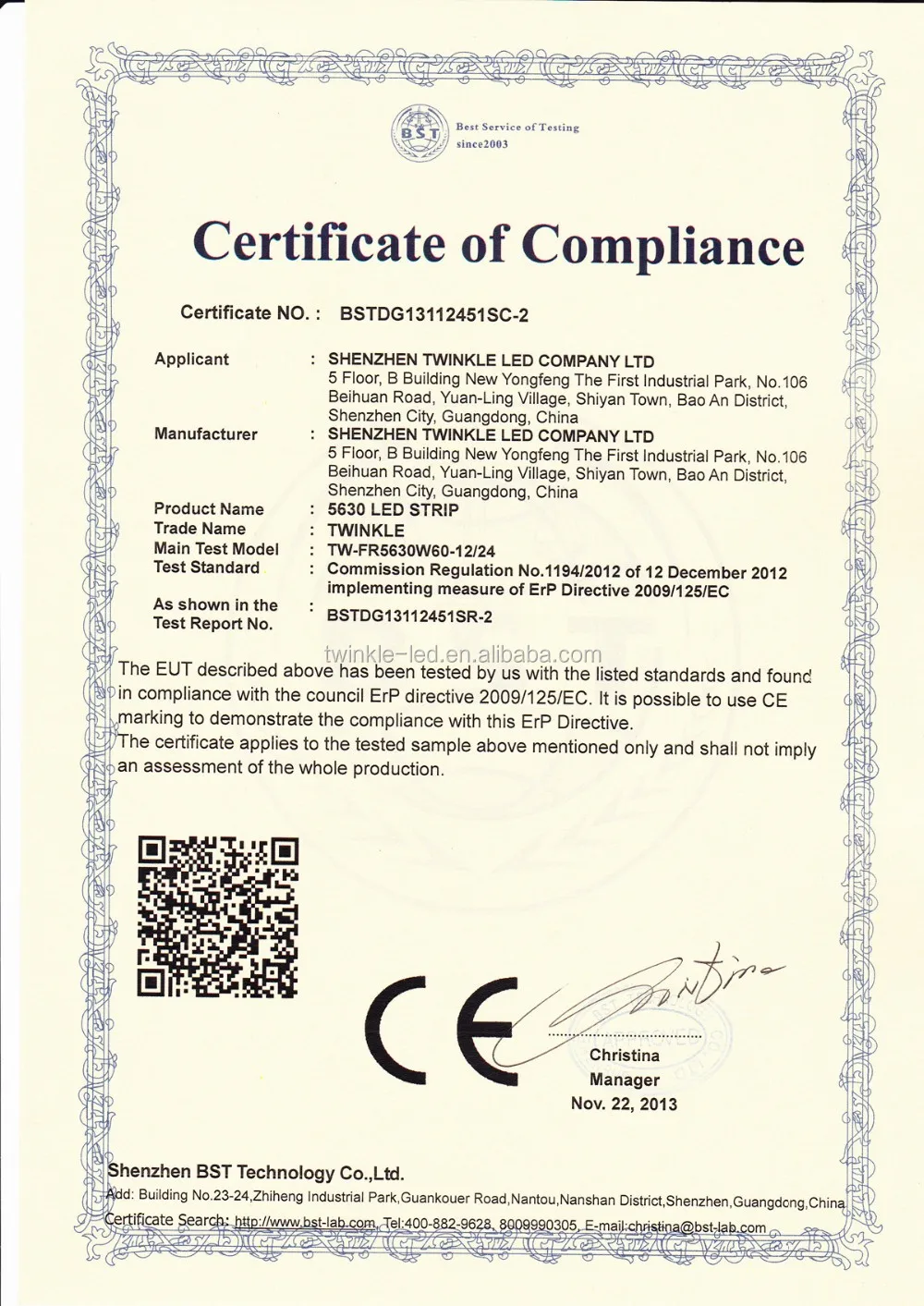

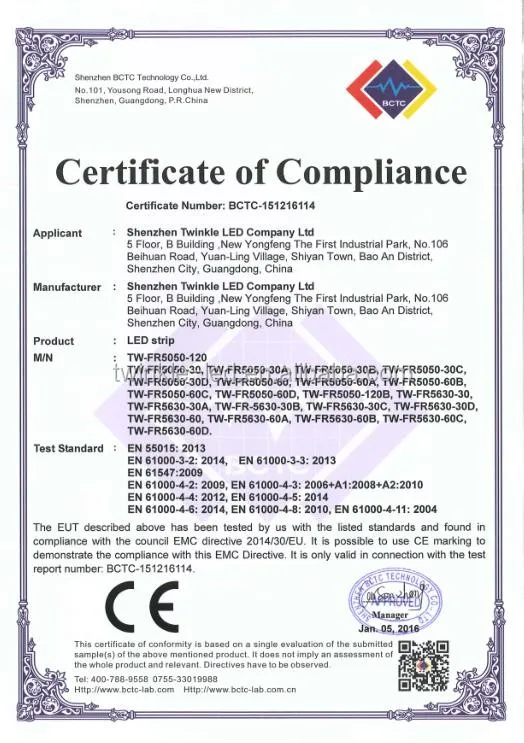

Certifications
FAQ

Q1. Can I have a sample order for led light ?

A: Yes, Sample order for quality test ;

Q2. What about the lead time ?

A:Sample : 3-5 days // Mass production : 5-9 days depends on order quantity and waterproof or non-waterproof ;

Q3. How do you ship the goods and how long does it take to arrive ?

A: DHL, FedEx, about 3-5 days, home delivery service // Airline and sea shipping also are optional ;

Q4. Any brand or logo on the led strip product ?

A: No, neutral packaging, neutral labels, no logo on PCB, and just English description of the product ;

Q5. Is it possible to print my logo on led products ?

A: Yes, OEM Products ;

Q6: Warranty for this led strip product ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, 2-3 years warranty, and if any quality problem, would be replaced a new one free ;
