Recessed Single Color Smd 5500k Ultra Thin 12v 3014 Strip Led Lighting

FOB Reference Price:Get Latest Price
US $2.9-3.9 / Meters | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
LED
Type:
Flex LED Strips
Input Voltage(V):
12/24
Lamp Power:
12W/M
Lamp Luminous Flux(lm):
1200
CRI (Ra>):
75
Color Temperature(CCT):
nature white
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
epistar
Certification:
CE, FCC, RoHS
Emitting Color:
White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
twinkle led
Model Number:
TW-FR3014-120-12/24
color:
white/warm white/natural white
led qty:
120leds/m
IP Rank:
IP20/65/67/68
warranty:
2 years
led:
epistar smd3014
SupplyAbility
SupplyAbility:
2000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
Packaging Details: 5m/roll, anti-static bag and export carton
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

Recessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb Lighting

Recessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb Lighting

SMD LED strip:



item noSMD 3528 LED stripSMD 5050 LED stripSMD 3014 LED strip5630 led strip
Input VoltageDC12V/24VDC12V/24VDC12V/24VDC12V/24V
LED STRIP chipsEPIstarEPIstarEPIstarEPIstar / Samsung
LED lightQty(M)30/60/120leds30/60eds120leds30/60leds
Luminous Flux 6-7LM/LED18-20LM/LED12LM/LED55-60lm/led
Beam Angle120120120120
Luminous DecayLess than 10% after 6000 hoursLess than 10% after 6000 hoursLess than 10% after 6000 hoursLess than 10% after 6000 hours
Work Temperature-20 ~ +60 °C-20 ~ +60 °C-20 ~ +60 °C-20 ~ +60 °C
CertificatesCE & RohsCE & RohsCE & RohsCE & Rohs
Size8MM/16MM*5000MM10MM*5000MM10MM*5000MM10MM*5000MM
lineone lineone  lineonelineone line
Color TemperatureRed / Blue / Green / Yellow / Warm white / Cool White/RGB



3528 led strip:epistar 6-7lm per led, 2 years warranty ,30leds/m, 60leds/m,120leds/m availabble



5050 led strip:epistar 18-20lm per led, 3 years warranty ,30leds/m,60leds/m available
5630 led strip:samsung/seoul chip,55~60lm per led,CRI>87Ra, 2years warranty, 30leds/m,60leds/m available




LED strip brightness are as below:
3528 30leds<3528 60leds<5050 30leds<3528 120leds<5630 30leds<5050 60leds<5630 60leds

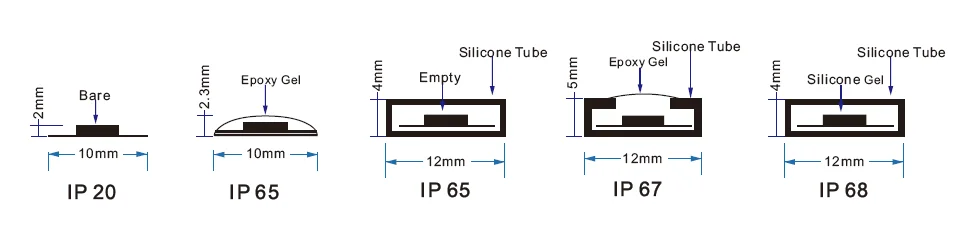

IP ranking:

IP20 Nonwaterproof

IP67 Waterproof A: Epoxy gel +"u" PC tube

IP65 Waterproof B: Silicon tube (removeable)

IP65 Waterproof C: Dropping Epoxy gel

IP68 Waterproof D: Silicon gel injected

  Recessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb Lighting



Pictures:Recessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb LightingRecessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb Lighting

Recessed Sk6812 Rgbw Single Color Smd 5500k Ultra Thin Set Digital Heat Resistant Addressable 12v 3014 Strip Led Rgb Lighting
